Omcan Hydraulic Industrial Cheese Grater Set – 5.5 HP & 20 HP Models with Optional Vibrating Screen (Made in Italy)

SKU 45404
$107,601.35
$107,601.35
Available Size(Horsepower):
MODEL:

Estimated Shipping Time

You can typically expect your items to arrive within 3-5 business days, depending on your location and product availability. See policy for more information.

What is your return policy?

At NexCore Supply we want every customer to shop with confidence. If something doesn't go as planned, we've made returns and refunds simple and fair. Here's how it works:

Customers may return eligible products within 14 days of receipt, subject to the conditions below.

Return Initiation

A return request must be submitted within 3 days of delivery by contacting Customer Service at support@nexcoresupply.com
or (912)-288-9775. Upon review, NexCore Supply will issue return instructions, an RMA number, and a prepaid return label, if applicable.

Eligibility Requirements

Returned products must be unused, undamaged, and in their original packaging, including all accessories and documentation. Proof of purchase is required. Products must be shipped within 7 days of receiving return authorization using a trackable courier.

Return Shipping

Return shipping costs are covered by NexCore Supply for all approved returns.

Refund Terms

Change of Mind: Eligible within 7 days of receipt; subject to a 25% restocking fee.

Defective or Damaged Products: Must be reported within 48 hours with photo or video evidence; customers may receive a replacement or full refund, including shipping costs.

Incorrect Product: NexCore Supply will arrange pickup and ship the correct item.

Non-Delivery: If a shipment is confirmed lost, a replacement or full refund will be issued.

Order Cancellations: Full refunds apply if the order has not shipped; otherwise, standard return procedures apply.

Refunds are processed to the original payment method after inspection. Processing may take up to 30 days, depending on the customer’s bank.

Non-Returnable Items

Custom or personalized items, perishable goods, intimate/sanitary goods (unless unopened), gift cards, and digital/downloadable products are not eligible for return.

Exchanges

Exchanges are offered for defective, damaged, or incorrect items at no additional cost.

Support

Customer Service: support@nexcoresupply.com
| (912)-288-9775
Hours: Monday–Friday, 12pm–7pm EST

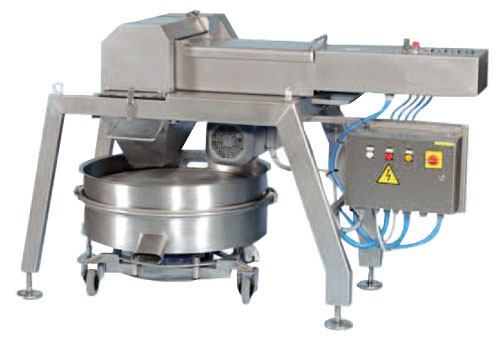

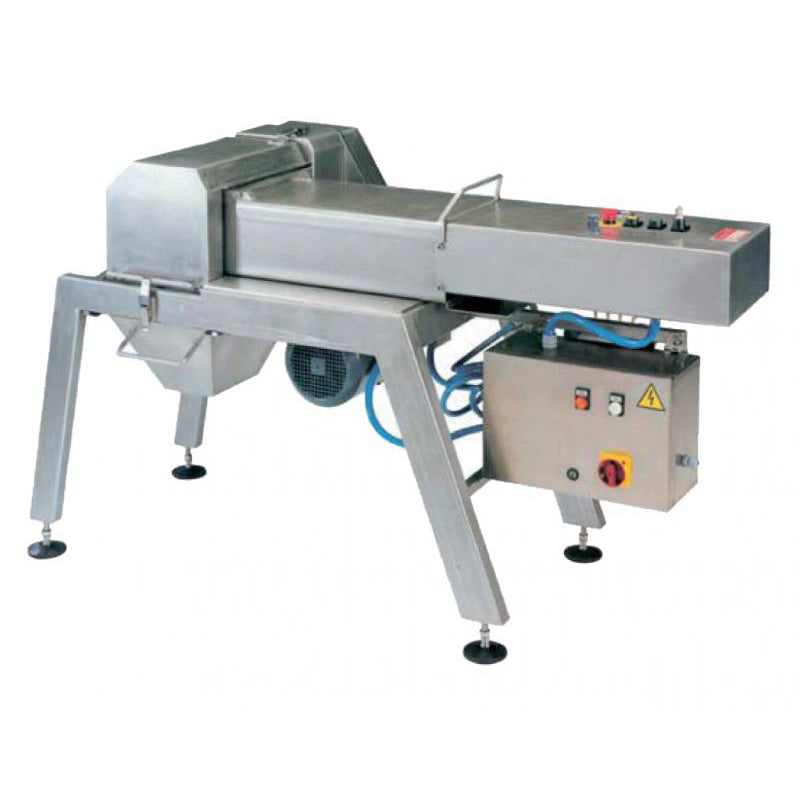

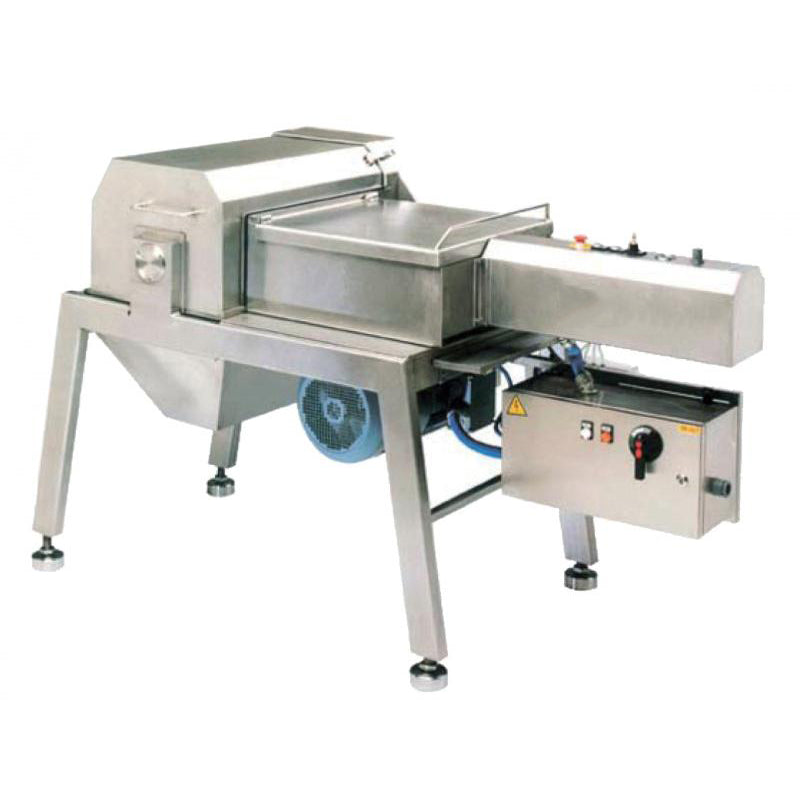

The Omcan Hydraulic Cheese Grater Set delivers exceptional performance, durability, and hygiene for high-volume cheese processing operations. Designed and manufactured in Italy, these industrial cheese graters are built entirely from AISI 304 stainless steel, making them ideal for food processing plants, dairy facilities, and large-scale commercial kitchens.

Available in 5.5 HP and 20 HP configurations, the Hydra series offers impressive hourly production rates ranging from 200 kg up to 1,500 kg per hour. Each unit is equipped with a self-braking SEW motor, ensuring safe operation and controlled shutdowns, while the pneumatic thrust cylinder provides consistent pressure for uniform grating results.

A standout feature of the Hydra series is the fast-extraction cogwheel system, allowing quick disassembly for daily cleaning and reduced downtime. For operations requiring a more refined and uniform final product, an optional vibrating screen is available. This conical sifting screen operates on three axes to ensure consistent particle size and optimal output quality.

Engineered for efficiency, safety, and long-term reliability, the Omcan Hydraulic Cheese Grater Set is a premium solution for professional cheese processing environments.

Available Models & Sizes

  • 5.5 HP Hydraulic Cheese Grater
  • 5.5 HP Cheese Grater with Vibrating Screen
  • 20 HP Hydraulic Cheese Grater
  • 20 HP Cheese Grater with Vibrating Screen

Key Features

  • Constructed entirely from AISI 304 stainless steel
  • High-performance hydraulic cheese grating system
  • SEW self-braking motor for enhanced safety
  • Available in 5.5 HP and 20 HP configurations
  • Fast-extraction cogwheel system for easy daily cleaning
  • Pneumatic thrust cylinder for consistent grating pressure
  • Designed to accommodate an optional vibrating screen
  • CE certified
  • Made in Italy
  • Shipped securely on a pallet

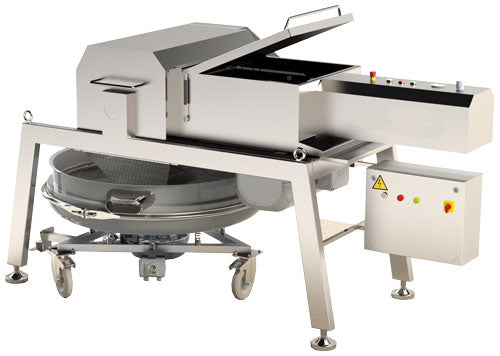

Optional Accessories

  • Vibrating Screen Assembly
    • Conical sifting screen for uniform end product
    • Operates on three axes for optimal distribution
    • Fully constructed from AISI 304 stainless steel
    • Designed to integrate seamlessly under the exit hopper
    • Ideal for consistent particle sizing and improved product quality

Specifications

Feature GR-IT-0300-H GR-IT-0300-CR800 GR-IT-1500-H GR-IT-1500-CR1200
Item Number 45404 47930 45403 47931
Horsepower 5.5 HP (4.10 kW) 5.5 HP (4.10 kW) 20 HP (14.9 kW) 20 HP (14.9 kW)
Motor Type SEW Self-Braking SEW Self-Braking SEW Self-Braking SEW Self-Braking
Electrical 208V / 60Hz / 3Ph 208V / 60Hz / 3Ph 208V / 60Hz / 3Ph 208V / 60Hz / 3Ph
Hourly Production Rate 200–300 kg/hr (440–661 lb/hr) 200–300 kg/hr (440–661 lb/hr) 1200–1500 kg/hr (2646–3307 lb/hr) 1200–1500 kg/hr (2646–3307 lb/hr)
Construction Material AISI 304 Stainless Steel AISI 304 Stainless Steel AISI 304 Stainless Steel AISI 304 Stainless Steel
Cylinder Type Pneumatic Thrust Pneumatic Thrust Pneumatic Thrust Pneumatic Thrust
Fast-Extraction System Yes (Cogwheel) Yes (Cogwheel) Yes (Cogwheel) Yes (Cogwheel)
Vibrating Screen Optional Included Optional Included
Main Unit Dimensions (L×W×H) 76.7″ × 31.5″ × 47″ 76.7″ × 31.5″ × 47″ 98.6″ × 44″ × 53″ 98.6″ × 44″ × 53″
Vibrating Screen Dimensions N/A 33.6″ × 41″ × 32″ N/A 47″ × 55.6″ × 35″
Net Weight 380 kg (661 lb) 470 kg (859 lb) 850 kg (1874 lb) 990 kg (2182 lb)
Certification CE CE CE CE
Country of Origin Italy Italy Italy Italy
Warranty 1 Year Parts & Labor 1 Year Parts & Labor 1 Year Parts & Labor 1 Year Parts & Labor
Shipping Pallet Pallet Pallet Pallet

Care & Maintenance

  • Clean the grater daily using the fast-extraction cogwheel system
  • Disconnect power before cleaning or servicing
  • Wash stainless steel components with food-safe cleaners only
  • Avoid abrasive pads to maintain surface integrity
  • Regularly inspect pneumatic components and motor connections
  • Schedule routine professional servicing for long-term performance
